Performance Characteristics
1-50 pieces of a single product
Maximum screw size: M4-M10*40
Nut size: M10
Additional sorting scale (re-inspection) accuracy reaches 99.9%
Sorting scale: Re-verify the conformity of various packaged products and reject unqualified packages to ensure 100% finished product quality.
Application Industry

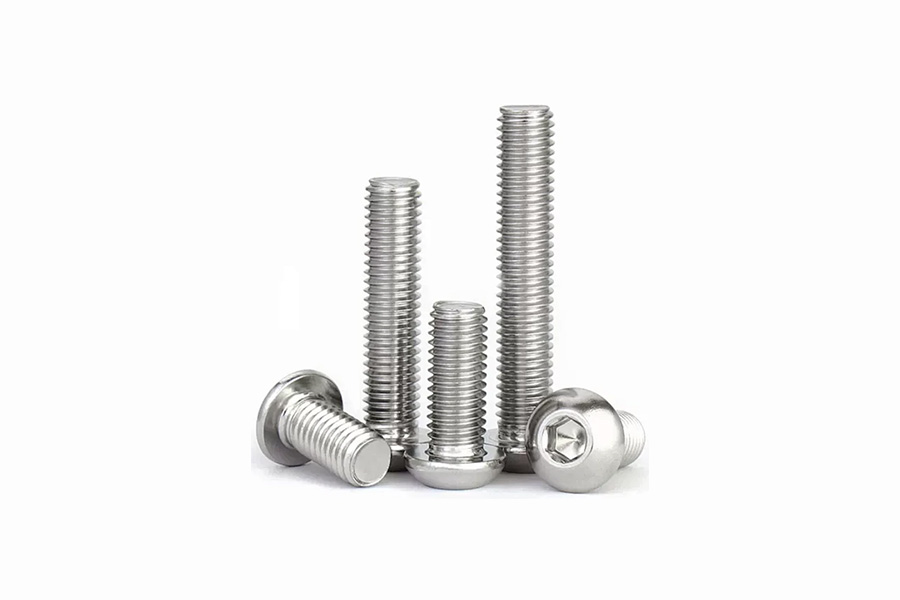

● Screws

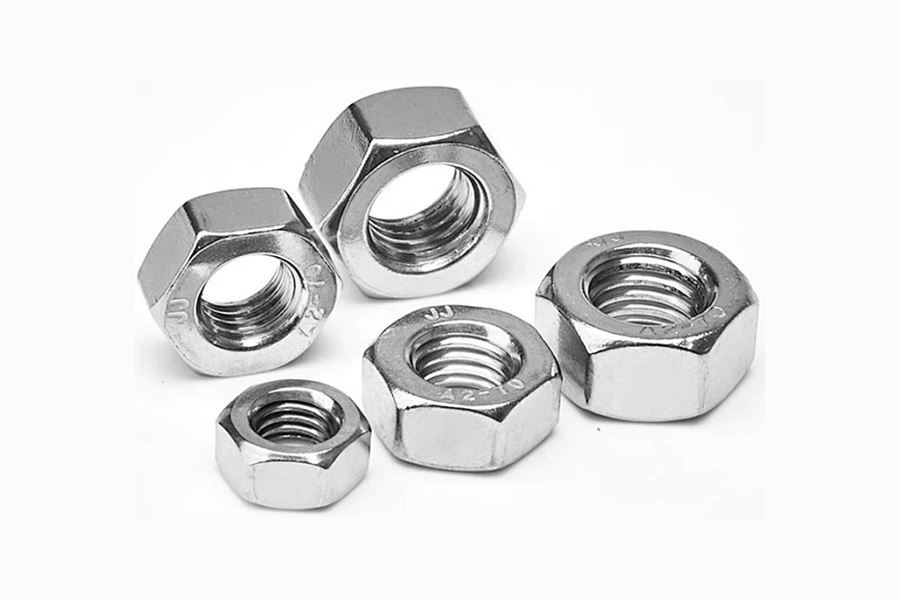

● Nuts and other granular products
Equipment Configuration
● Vertical packing machine
● Vibrating plate
● Conveyor
● Printer (optional)
● Labeling system (optional)
● Sorting scale (optional)
Technical Parameters
| Measuring Range | 1-50PCS |
| Packing Efficiency | 1200-3000 Bag/hour |
| Bag Length | 80-140mm |
| Bag Width | 50-150mm |
| Bag Making Forms | Back Seal |
| Thickness Of Film | 0.7-0.8mm |
| Packaging Materials | Composite membrane materials, aluminum foil, heat sealing film |
| Machine Power | 1.2KW |
| Power Supply | 220V 50HZ-60HZ |
| Machine Weight | 270kg |
| Machine Size | L2.0*W0.9*H1.6m |
| Case Material | Stainless Steel |
