Performance Characteristics
1. Feeding method: Manual weighing and feeding are preferred;
2. High versatility: Not limited by product type, shape, quantity, etc.;
3- Suitable for frequent switching (suitable for small packaging quantities and diverse product varieties per batch);
4. Easy to operate: Even elderly people can easily operate it;
5. Packaging range: 1-5 kg or less, no product type restrictions (bolts M10 and below are preferred); as long as the bag can hold it.
6. Packaging speed: 200-300 packs/hour (500 packs/day for manual packaging);
7. The packaging machine has a built-in weighing system that can be connected to ERP or MAIS systems, and features a multi-functional electric bag carrier.
8. Bag dimensions: Length adjustable from 100-300 mm; bag width 200 mm; one machine can only produce one bag width.
Application Industry

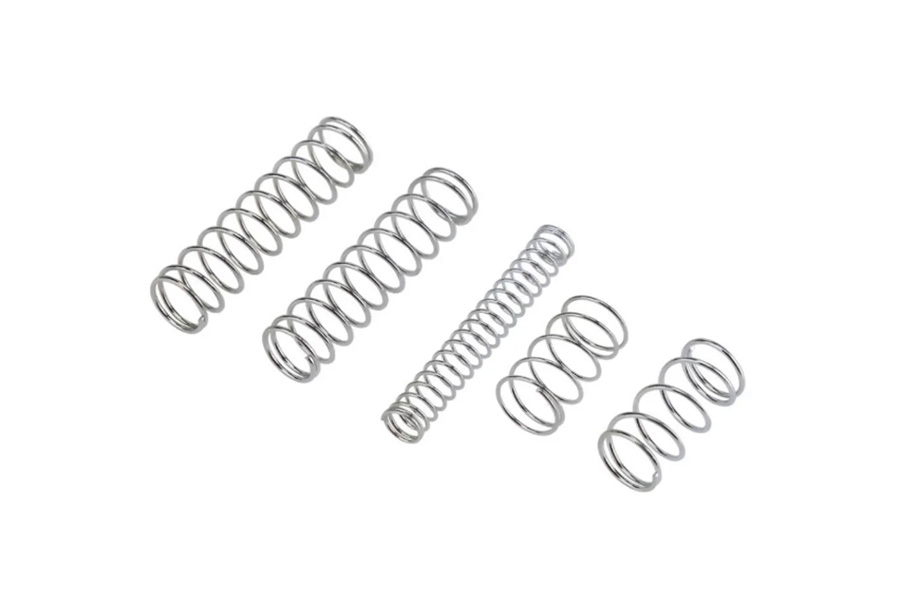

● Springs
● Stamping parts
● Rubber parts
● Seals
● Snap rings and other custom hardware products
Equipment Configuration
● Electric lifting platform
● Conveyor
● Printer (optional)
● Labeling system (optional)
● Sorting scale (optional)
Technical Parameters
| Packing Efficiency | 300-500 Bag/hour |
| Bag Length | 100-300mm |
| Bag Width | 190-300mm |
| Bag Making Forms | Back Seal |
| Thickness Of Film | 0.7-0.8mm |
| Packaging Materials | Composite membrane materials, aluminum foil, heat sealing film |
| Power Capacity | 1.2KW |
| Power Voltage | 220V 50-60Hz |
| Air Pressure | 0.5-0.8Mpa |
| Machine Weight | 270 kg |
| Machine Size | L3.5*W0.9*H1.6m |
| Case Material | Stainless Steel |
